Psychrometric chart

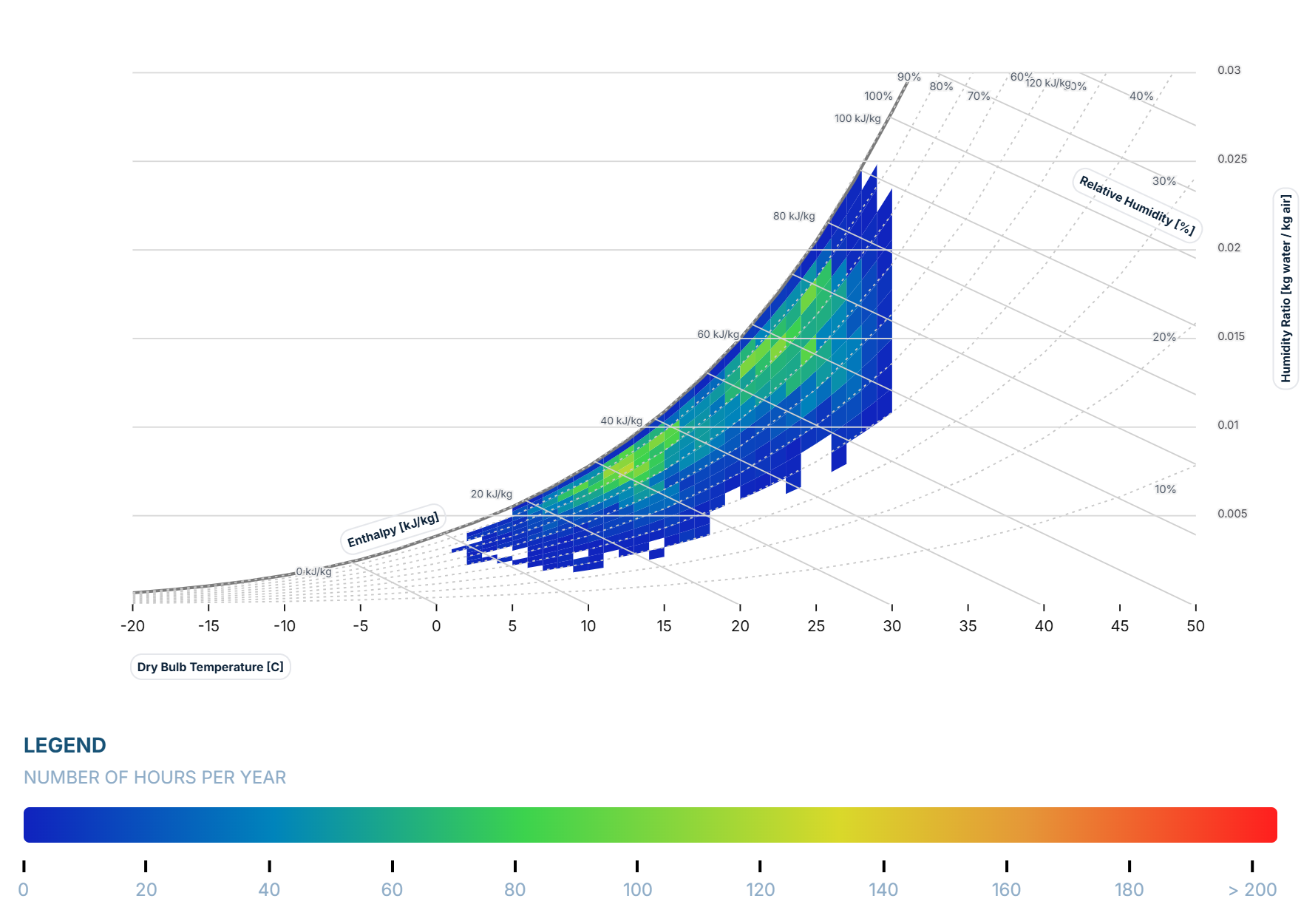

Every hour of the site's typical year is placed on the chart by its dry-bulb temperature and humidity ratio. The chart is divided into small cells, each coloured by how many hours of the year fall into it, from a handful (blue) to 200 or more (red), so the conditions the site spends most of its time in stand out at a glance.
Curves of relative humidity and lines of enthalpy run across the chart, so every cell can also be read as a humidity and a heat content. Alongside it, a table lists the properties the chart relates: dry-bulb, wet-bulb and dew point temperature, relative and absolute humidity, specific volume, enthalpy and vapour pressure.
The hourly temperature analysis also compares the site against an ASHRAE-55 adaptive comfort band.
Passive design strategies for indoor environments
Projects on a paid plan measure the site against bioclimatic strategy zones and count the share of the year's hours that fall inside each one, ranked month by month. You choose the method: Givoni-Milne, whose zones are fixed shapes from the published Building Bio-Climatic Chart, or Szokolay's control potential zones, calculated from the site's own climate.
Under Givoni-Milne the seven strategies are passive solar heating, internal gains, solar protection, natural & forced ventilation, high thermal mass, mass cooling & night ventilation, and evaporative cooling.
From hours to a design direction
Szokolay's set separates thermal mass into a heating and a cooling strategy, and splits evaporative cooling into direct and indirect. The comfort zone sits alongside the strategies as the reference they are measured against, not as a strategy of its own.
Two donut charts give the numbers that matter: the share of heating hours, and of cooling hours, that the selected strategies remove from a mechanical system. C4B pre-selects the combination that removes the most while still being buildable as one design, and flags which pairs reinforce each other and which impose conditions on the building. Under Givoni-Milne it also tests the two thermal-mass strategies day by day, leaving out days whose predicted indoor peak would still fall outside comfort.
The Designer module
The Technical and Enterprise plans add a second module, Passive Design Strategies for Indoor Environments - Designer:
- The psychrometric chart with the strategy zones drawn on it.
- Every hour of the year as a heatmap, and the breakdown by season and time of day.
- A technical month-by-month hours breakdown.
- A choice of comfort definition: the method's own zone, ASHRAE 55-2023, ISO 7730 or EN 16798-1:2019.
